Stainless Steel 304
A stainless steel option offering corrosion resistance, weather resistance and mechanical strength for general industrial and outdoor environments.
NINGBO VOLTUMELECTRICAL&ENGINEERING
Switchgear & Electrical Accessories

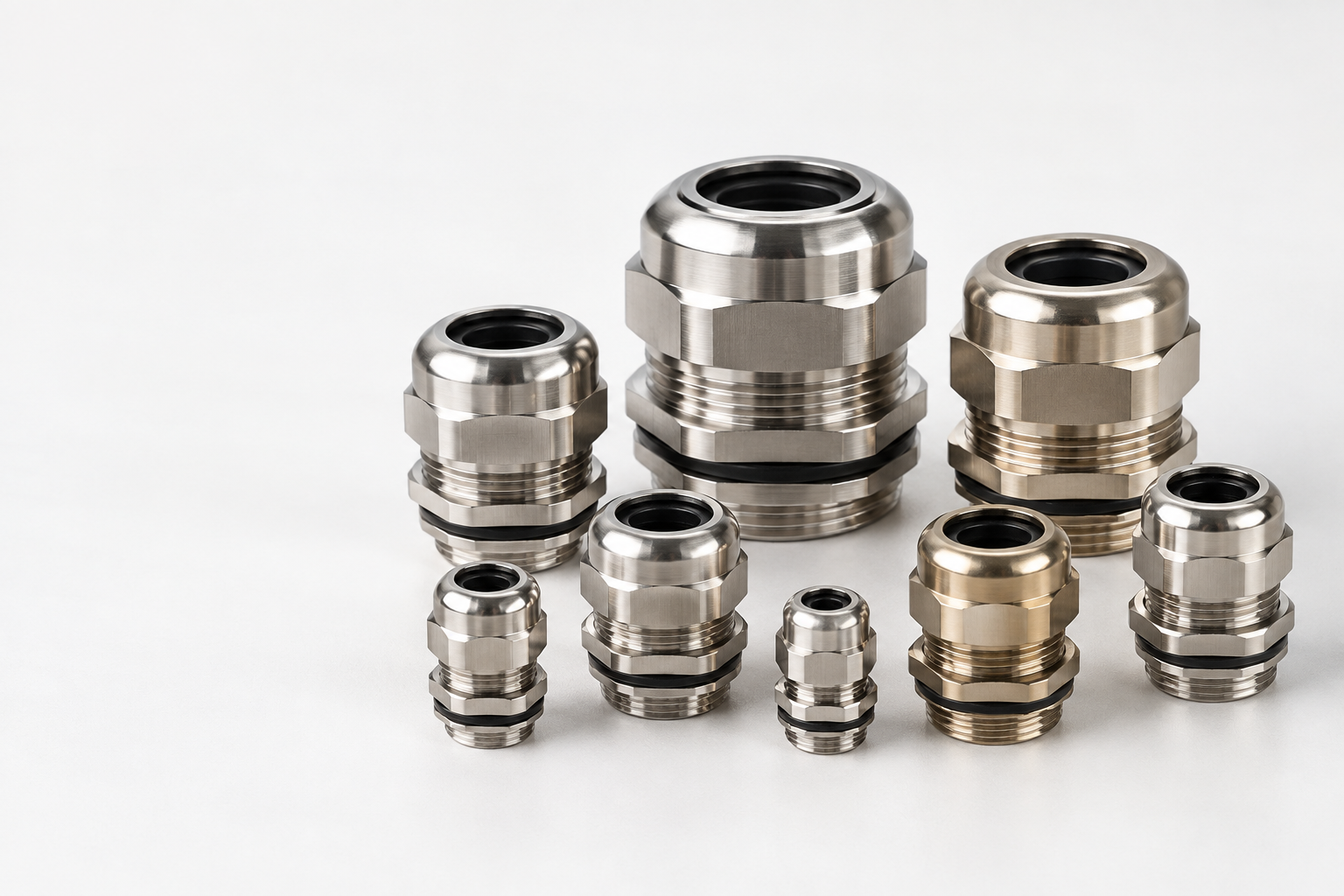

Stainless Steel & Brass Cable Glands
Cable glands for securing cable entries and providing sealing, waterproof protection and strain relief across electrical and industrial equipment.
Quick Specifications
- Material
- Stainless Steel 304/316, Nickel-Plated Brass
- Thread Size
- M12–M63 / PG7–PG48 / NPT
- Cable Outer Diameter
- 3–100 mm
- Protection Rating
- Up to IP68
- Working Temperature
- -40°C to +100°C
Product Overview
Cable glands, also known as cable connectors or waterproof cable glands, are connecting components used to secure cables and provide sealing and waterproof protection. They are widely used in electrical cabinets, distribution boxes, mechanical equipment, and outdoor cable entries, effectively preventing dust and moisture from entering the equipment while securing cables and providing strain relief.
Key Features
- Sealed and waterproof
Used with sealing rings to provide dust and water protection, depending on the selected configuration.
- Secure and strain-relieving
Clamps the cable to help prevent loosening or pull-out.
- Corrosion-resistant
Stainless steel and nickel-plated brass materials suit different environmental requirements.
- Complete specifications
Various thread sizes and cable outer diameter ranges are available.
- Easy installation
A simple structure allows installation by tightening the nut.

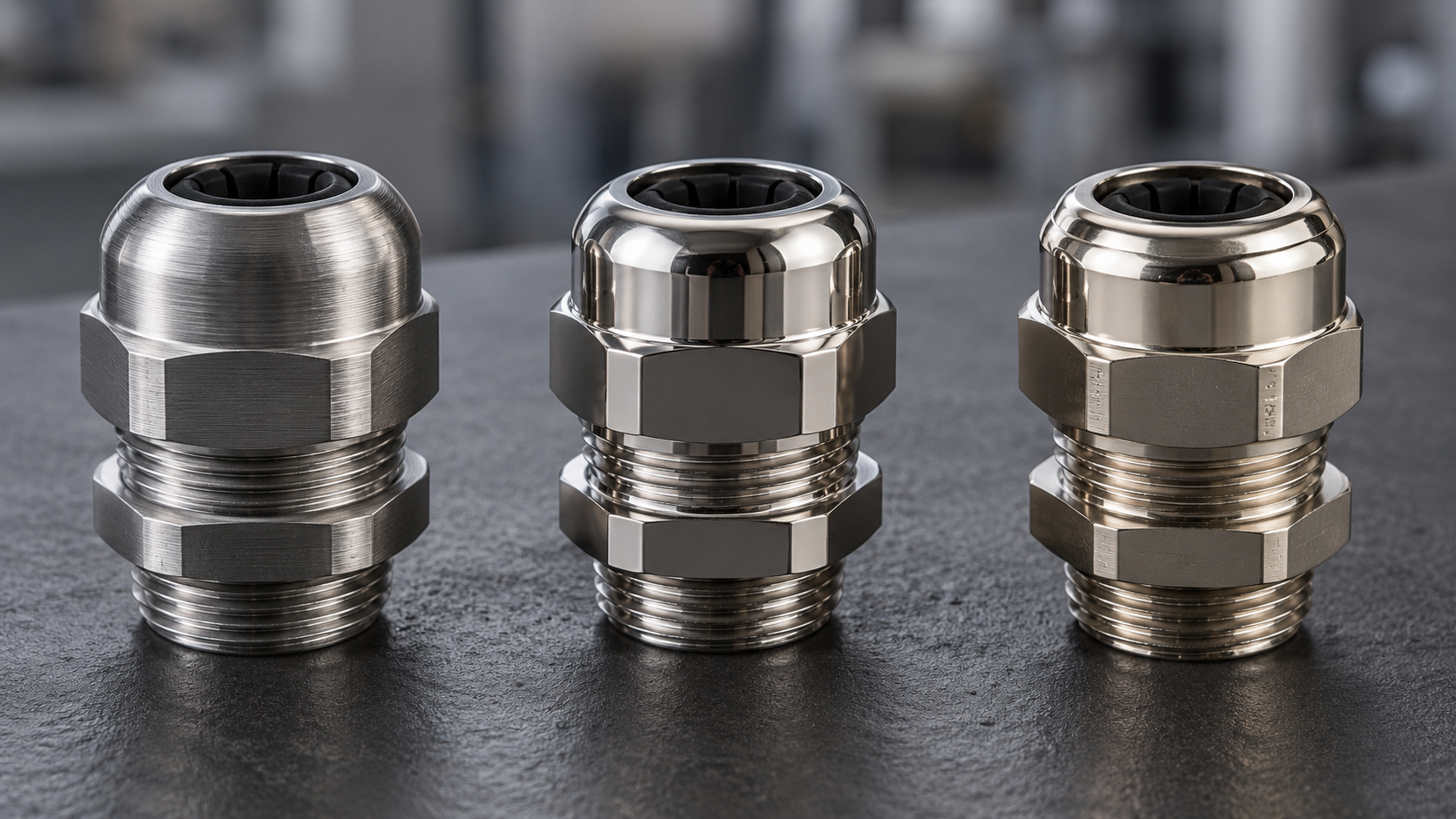

Material Options
Compare the available materials against the installation environment and corrosion requirements.
Stainless Steel 316
A stainless steel option suited to marine, chemical, humid and other corrosive environments where greater material resistance is required.
Nickel-Plated Brass
A machined brass option with high mechanical strength and a smooth surface; nickel plating provides enhanced corrosion resistance.
Technical Specifications
Material
Stainless steel 304/316, brass (nickel-plated )
Thread Size
M12 – M63 / PG7 – PG48 / NPT
Cable Outer Diameter
3 mm – 100 mm
Protection Rating
Up to IP68Protection rating depends on the selected model and sealing configuration.
Working Temperature
-40°C to +100°C
Color
Natural metal, nickel-plated silver

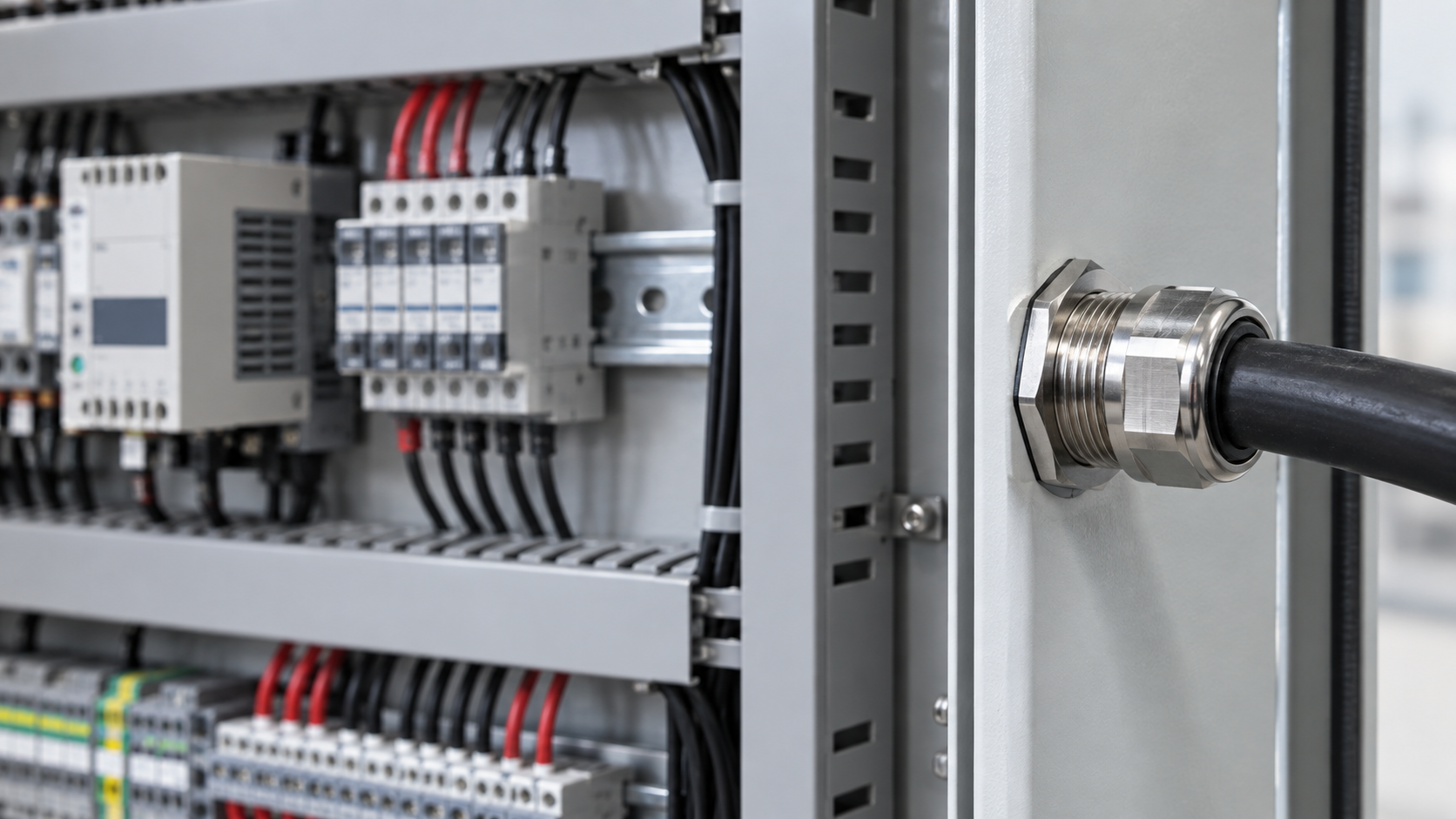

Applications
- Electrical cabinets
- Distribution boxes
- Mechanical equipment
- Outdoor cable entries
- Marine and corrosive environments
Need Help Selecting the Right Cable Gland?
Share the required material, thread size, cable outer diameter and operating environment for product selection and quotation.
